Kramer Module (Beta)

Kramer 2000 / 3000 - the transport protocol RS232 / RS485, produced by KRAMER ELECTRONICS Ltd., used for remote contolling matrix commutators via serial ports RS232 / RS485.
KRAMER ELECTRONICS company provides a user with a great range of matrix commutators from passive (on button and rotary switches or relays) to electronic  of 2 х 2, 4 х 4, 4 х 5, 4 х 6, 6 х 6, 8 х 2, 8 х 6, 8 х 8, 16 х 4, 16 х 8, 16 х 16 dimension. These devices support all video signals (composite video, S-Video, component video Y,Pr,Pb, RGB, RGBS, RGBHV, VGA/XGA/UXGA) and audio (balanced, disbalanaced) at that audio signals can commutate both independently and with the highest precision of synchronization with the corresponding videosignals.

iRdium for Kramer driver provides you with the following capabilities of controlling a commutator from a sensor panel:

  • setting Аudio/Video signal seperately in different zones;
  • setting Аudio/Video signals in all zones at once ;
  • setting Audio mode (Follow / Break Away);
  • blocking / unblocking the panel;
  • regulating volume of Audio signal (increase, decrease, stop from level) for one zone or all zones at once.

Supported commutator models:  all commutators produced by KRAMER ELECTRONICS
Supported iRidium versions: V2.1 and later

Application for launching the module on iOS/Android: i2 Control V2.1 and later

Required licenses:  iRidium for AV&Custom Systems: Device license Pro



  • What does the Module consist of?
    The file you are downloading.

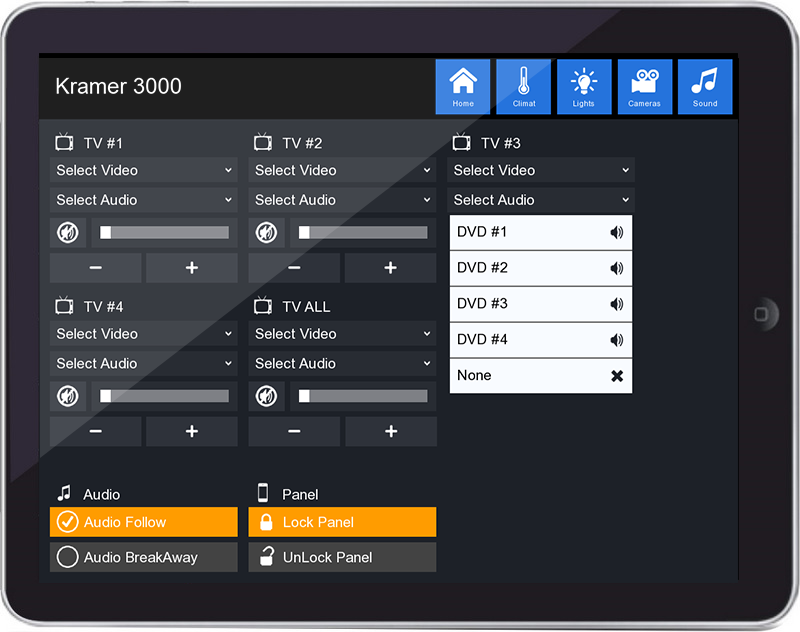

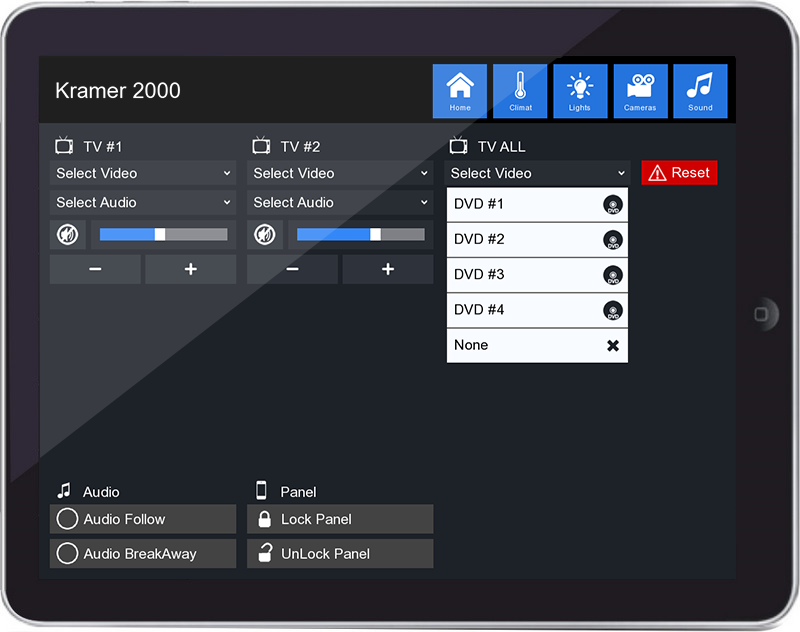

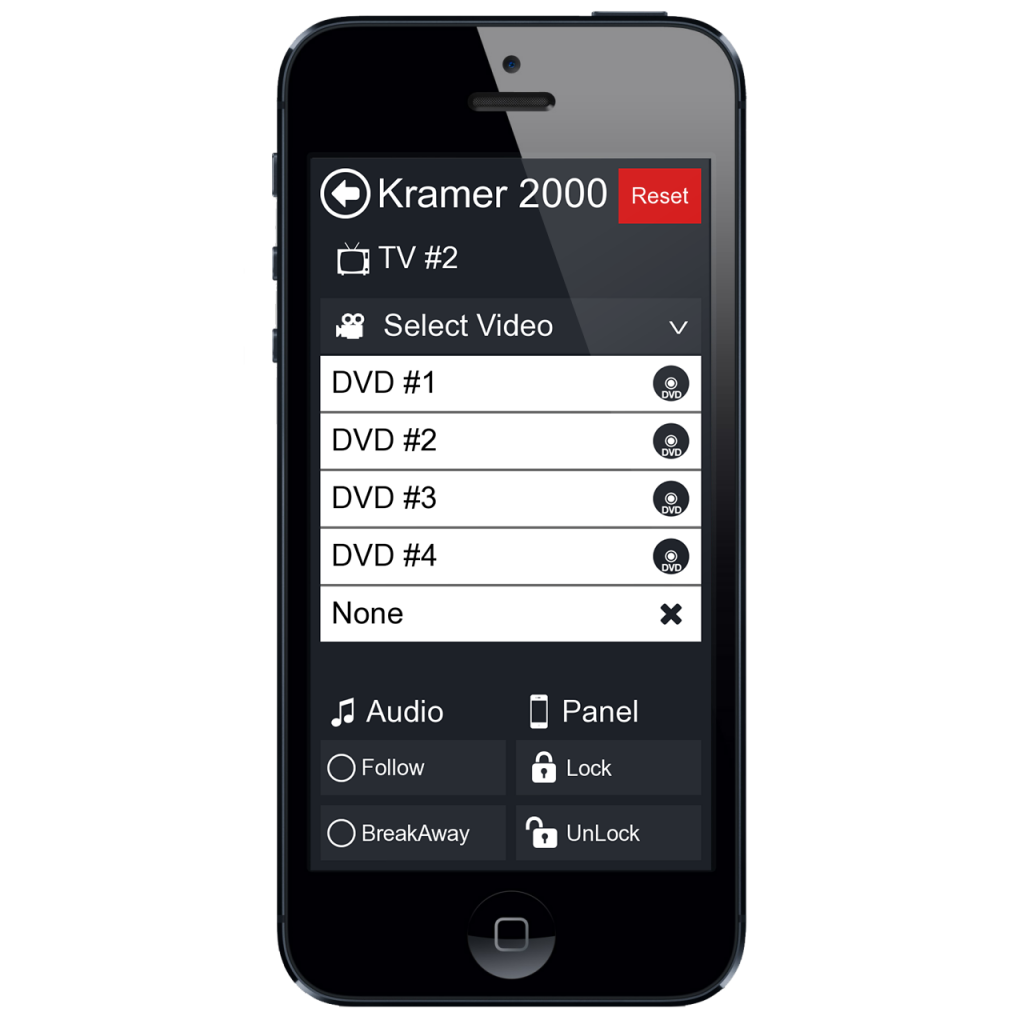

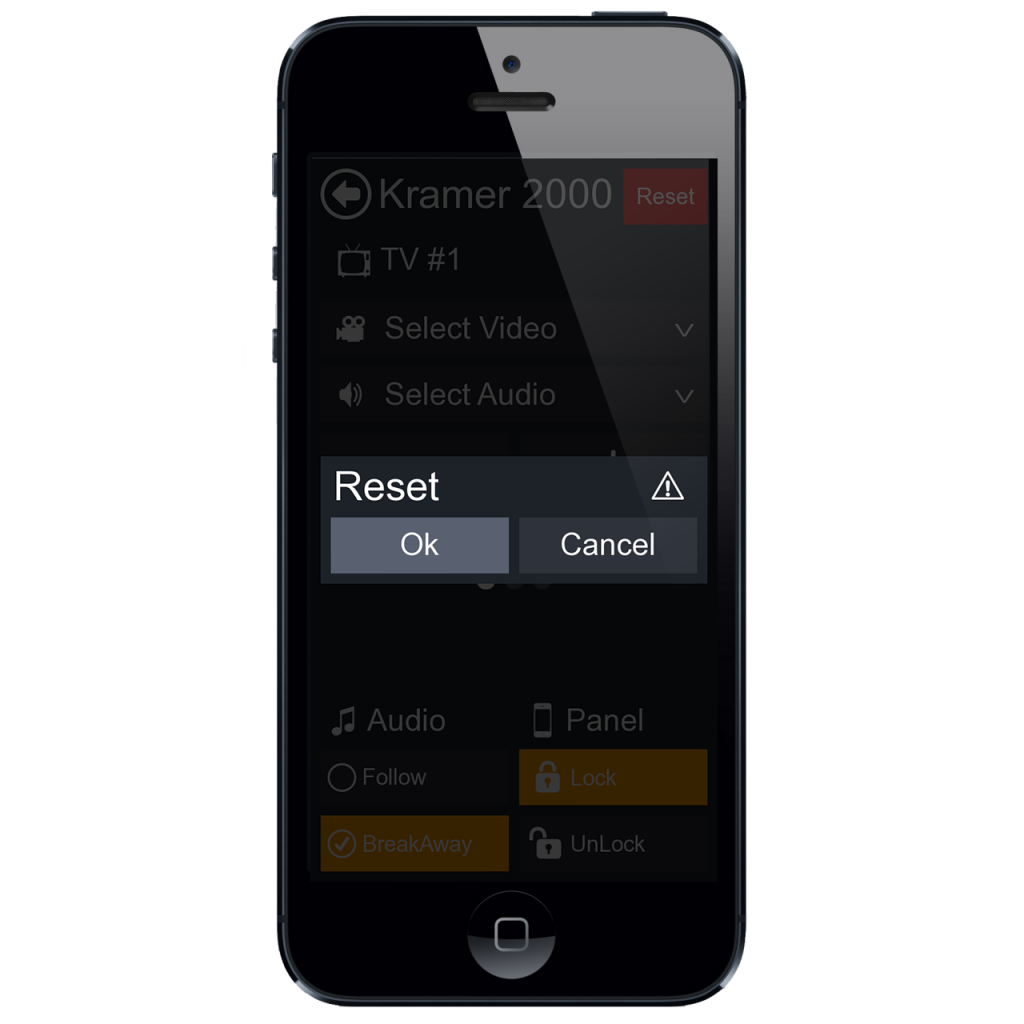

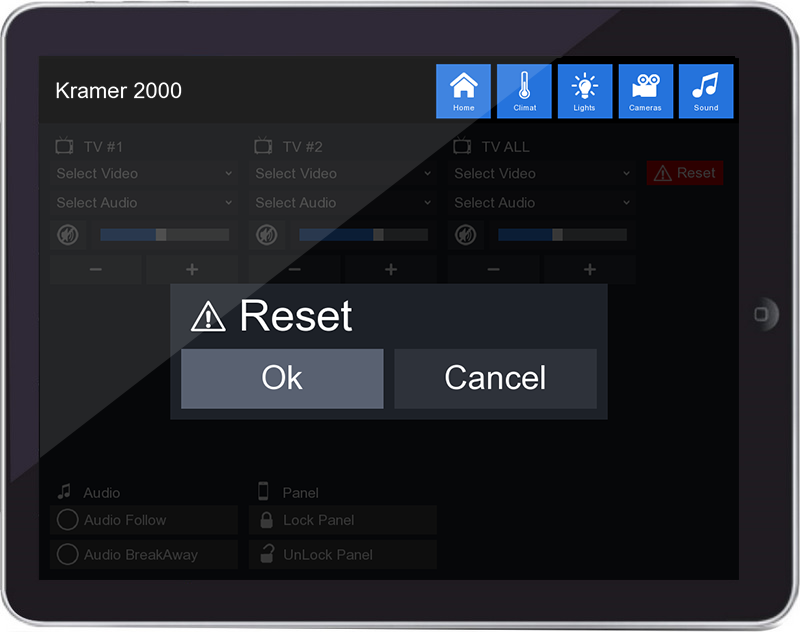

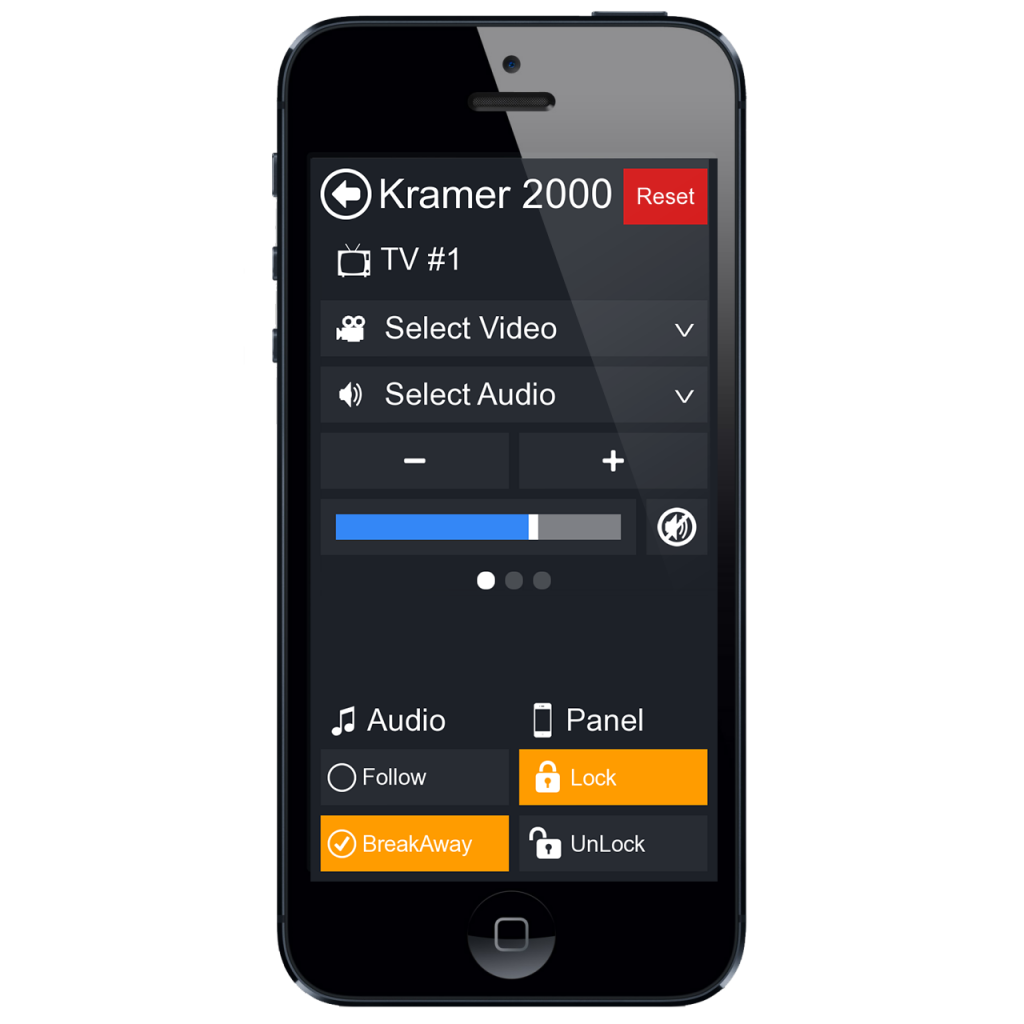

    A project of Module.irpz format which you can add to your automation project, modify it using iRidium GUI Editor or upload it on your control panel using iRidium Transfer. The project contains a ready interface created in the Metro style, a script for working with the driver, the driver itself with commands and feedback channels.
    Description of iRidium GUI Editor
    Description of iRidium Transfer
Developer's web-site:
