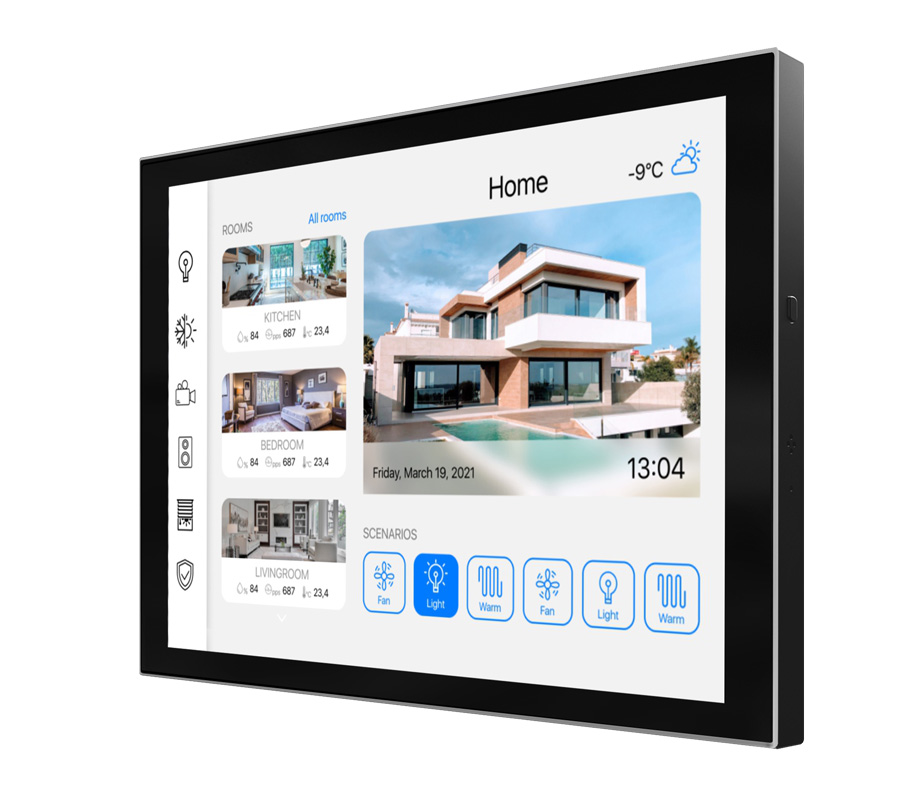

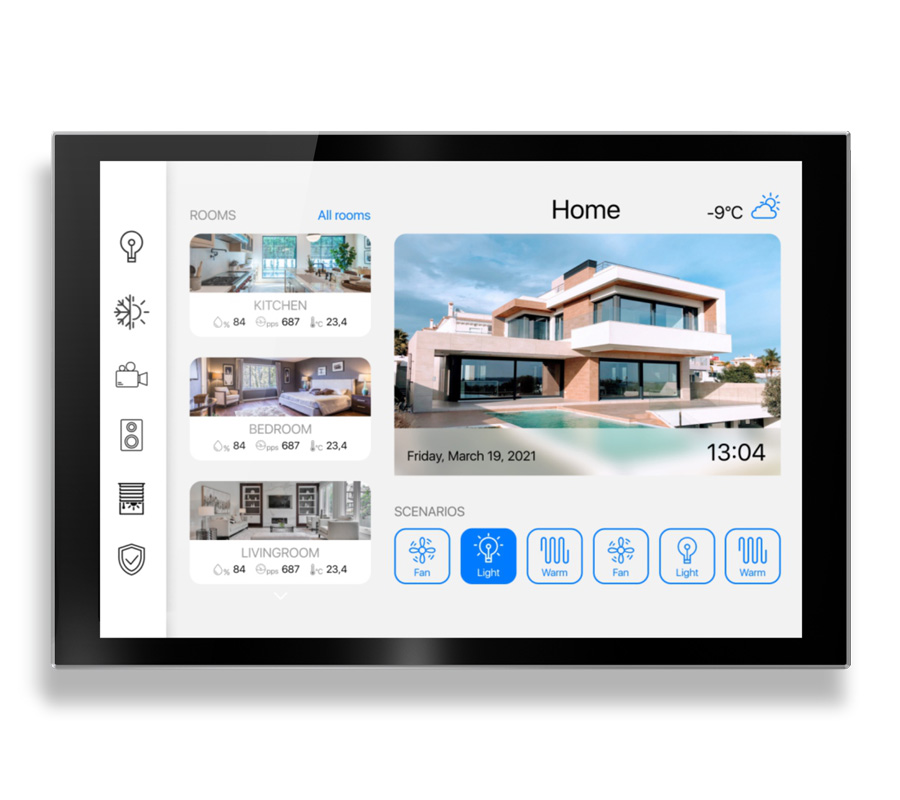

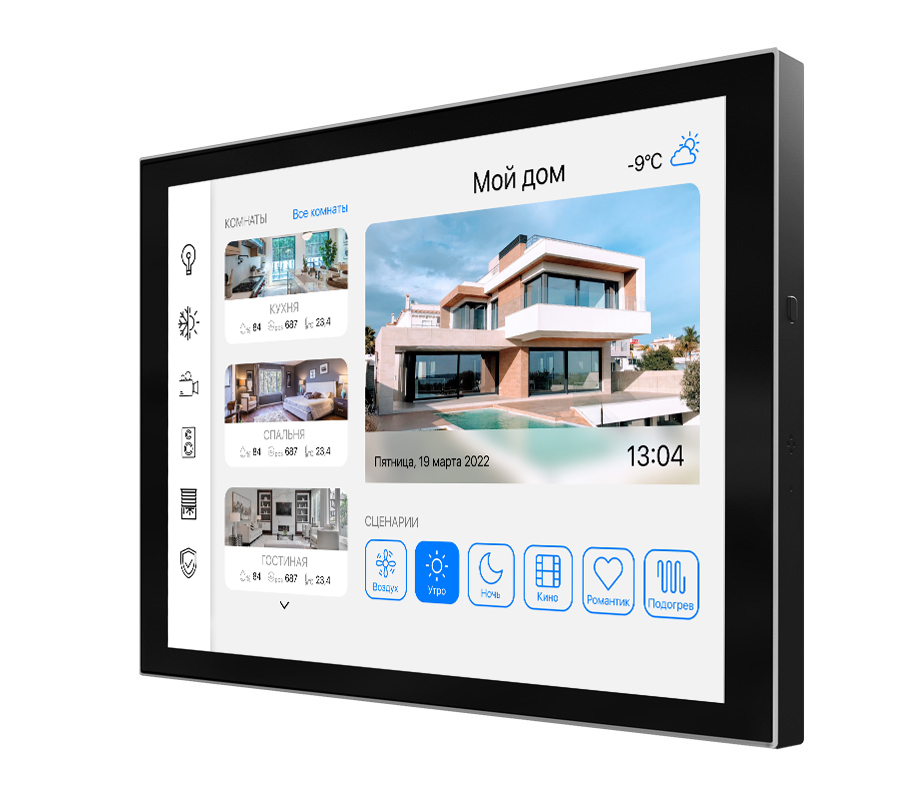

Touch Panel P8

Warranty: 2 years

Technical specification

Product Code P8
Screen size 8"
Orientation horizontal (by default)
Technology of screen manufacture IPS
Screen resolution 1280 x 800
Brightness, cd/m2 350
Viewing angles (horizontal /vertical) not less than 170°
Operating system Android 11
Size, mm 200х126х37
Case material aluminum
CPU Rockchip rk3399
RAM / Internal memory 2 Гб / 16 Гб
Power 24V DC 0.5A, PoE 802.3at
Current consumption up to 0.5 А

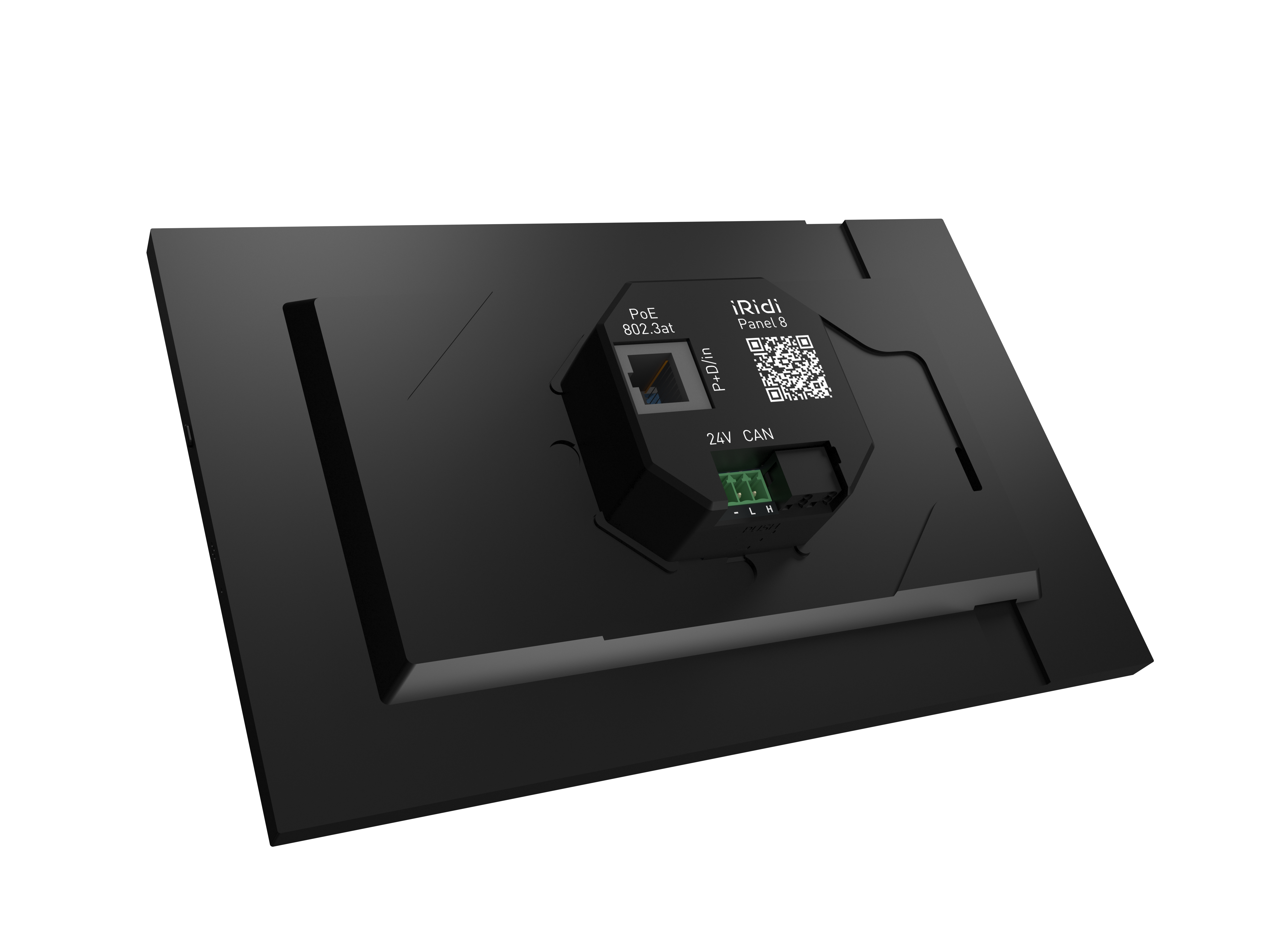

Interfaces RJ 45, CAN
Protection class IP20

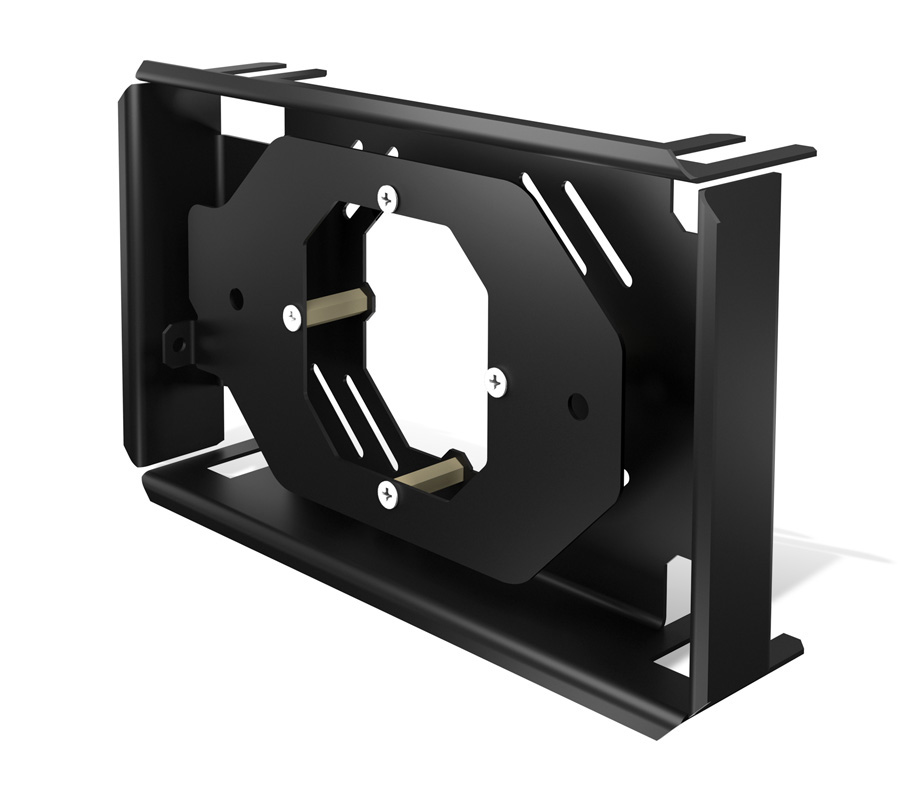

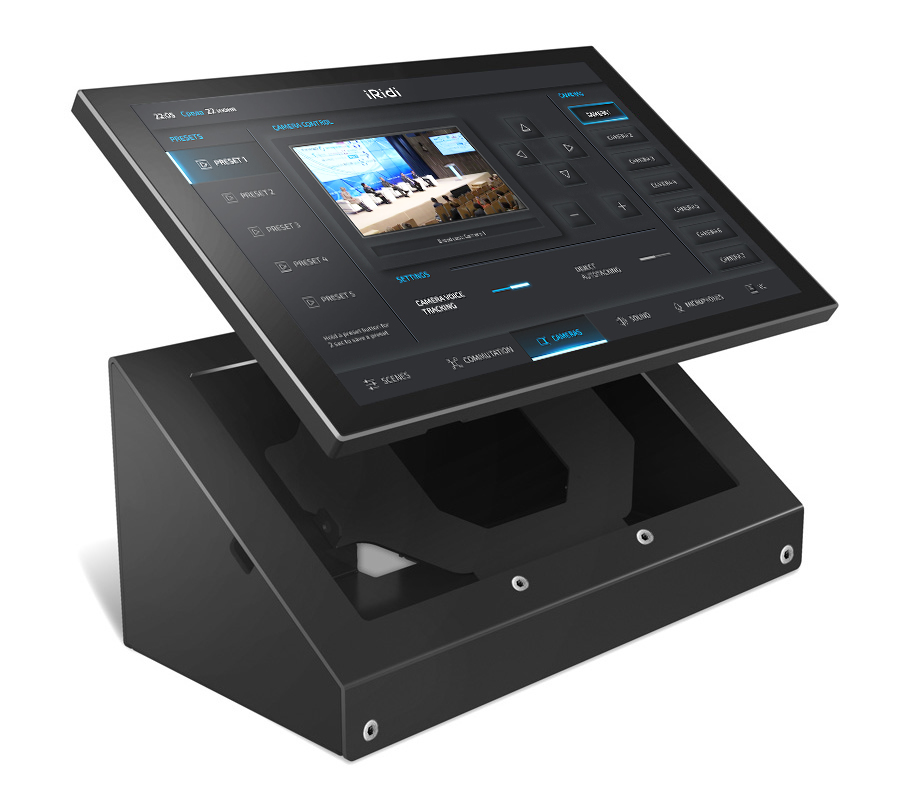

Mounting in a pattress box (by default), in a semi-recessed mounting box (optional) or in a desktop mount (optional)
Sound 1 х MIC, Double polyphonic sound
Proximity sensor yes
Noise reduction yes
Wi-Fi no


A convenient interface to control smart home or office devices: lighting, ventilation, climate, security, multimedia equipment, etc.
The panel is made in a modern laconic design and easily fits into various interior solutions for home and office.

- Video surveillance
- Video intercom
-Individual interface
- Setup and launch of routines
- Climate contro
- Curtain control
- Color touch display

More info
