"UGMK-ZDOROVYE" Medical Center
"UGMK-ZDOROVYE" Medical Center is one of the largest automation objects in the Ural. The total square of the center is 28 000 square meters; 26 automation systems are used in the building. iRidium is used to control automation equipment in patient wards and in public areas.
Why did you decide to use iRidium? How did it improve your project?
iRidium was selected as visualization and integrations of different protocol were required. And iRidium is a good financial solution. Another advantage is that it’s convenient to launch the same software on panels and the server.

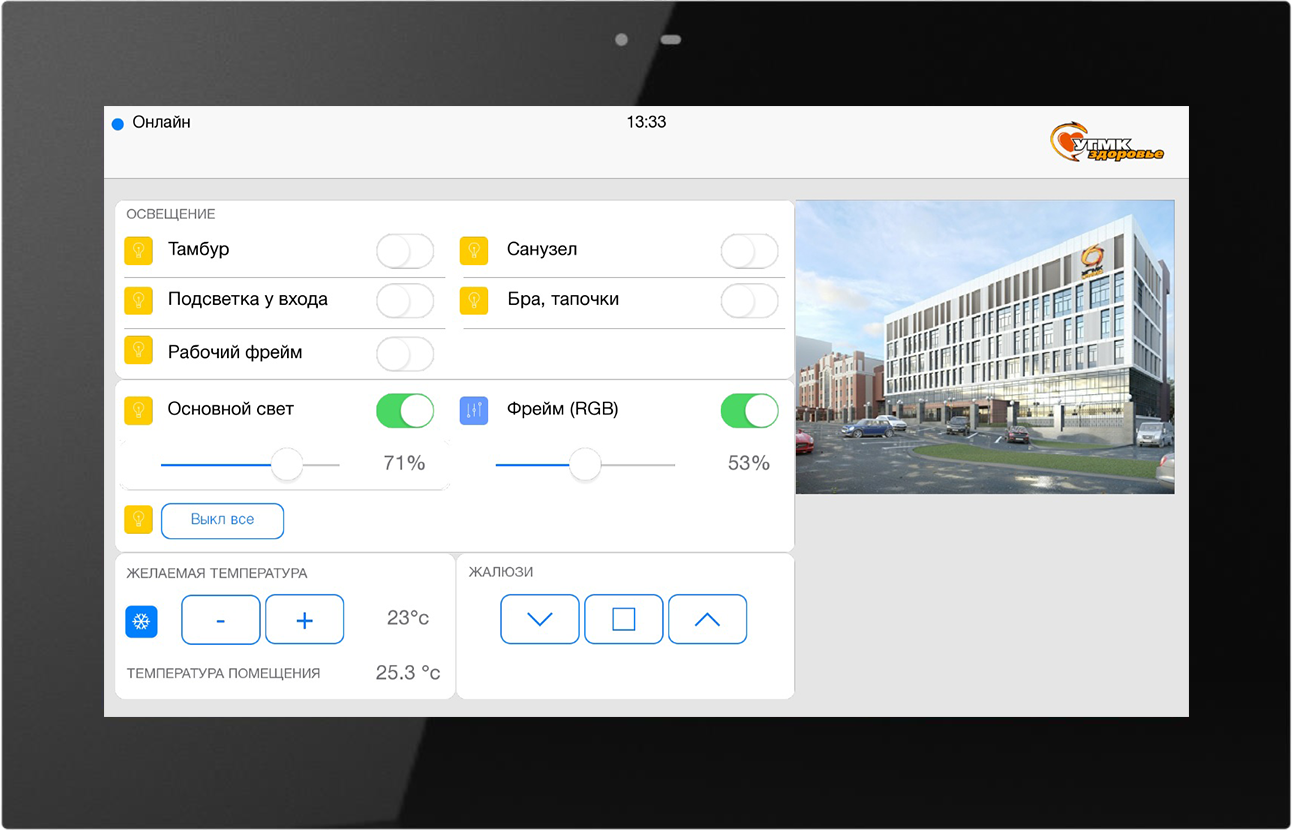

iRidium was used to create a special interface to control from a patient's control panel and from a panel on nurse's stations. iRidium server UMC (7 psc) are used to integrate KNX with SBO by Schneider Electric and Schrack Seconet VCIP ward alarm system.
iRidium also added developments to the driver Modbus RTU, to block requets of malfunctioning modules.
After the project was realized, there started development of a Launcher control panels in patients' wards.
Tasks set by the customer:
- getting notifications from the medical control system;
- forming a greeting on the screen when a patients is hospitalized;
- capability to block certain apps;
- capability to display and hide additional app of the panel screen;
- remote control of fonts for notifications and a screensaver.
Fire security systems:
1) Fire alarm on the basis of ESMI equipment by Schneider Electric.
2) Automated fire protection on the basis of ESMI equipment by Schneider Electric.
3) Automated water fire-fighting system.
4) Automated gas fire-fighting system.
5) Automated smoke removal on the basis of ESMI equipment by Schneider Electric.
6) Public address and evacuation control system on the basis of Variodyn D1 equipment by ESSER by Honeywell, and light notification system on the basis of ОСА-1 by OMEGA.
7) Security alarm and access monitoring and control system on the basis of Security Expert equipment by Schneider Electric.
8) Video surveillance system on the basis of Pelco equipment by Schneider Electric.
9) Water supply automation on the basis of equipment by Schneider Electric.
10) General ventilation automation on the basis of EcoStruxure Building Operation equipment by Schneider Electric.
11) Automated power supply monitoring and control system on the basis of LERS UCHET.
12) Automated heat supply station on the basis of equipment by Schneider Electric.
13) Light control on the basis of DALI protocol via KNX/DALI gateways by Schneider Electric.
14) Automated refrigerating plant on the basis of equipment by Schneider Electric.
15) Dispatching of medical gases on the basis of equipment by Schneider Electric.
16) Dispatching of power supply the basis of Acti 9 Smartlink system by Schneider Electric.
17) Gas analysis system for parking lot on the basis of equipment by «Analitprobor».
18) Zone control on the basis of KNX protocol - Schneider Electric equipment and iRidium mobile.
19) Complex automation on the basis of EcoStruxure Building Operation equipment by Schneider Electric.
20) Data transmission networks. The network includes structured wiring system on the basis of Actassi solution by Schneider Electric and local computer network on the basis of Cisco equipment.
21) Electronic queuing system on the basis of solution by Damask company.
22) Clock system by Mobatime.
23) Guaranteed bulk power supply of weak current systems on the basis of equipment by Scheider Electric.
24) Television system.
25) Ward alarm and connection system on the basis of Visocall IP equipment by Schrack Seconet and equipment by 2N TELEKOMUNIKACE a.s.
26) Dispatching of elevators on the basis of equipment by OB’ company.
