Smart Home ().
Basic functions of the system:
- control of lighting (KNX)
- control of heating (KNX)
- control of conditioners (KNX adapters)
- weather monitoring (KNX)
- control from touch panels, customers' devices, locally or remotely (iRidium)
- building automation system: ventilation, boiler, вентиляция, котёл, generator power-transfer relay, UPS (Modbus RTU/TCP, KNX)
- monitoring of power consumption and power quality
- passive safety function

Smart Home

User case of a Smart Home based on KNX system

  • all systems controlled by users (lighting, blinds, heating, warm floors, etc.) are located on the living floors
  • every floor has its own electric switchboard, that combines function of distributing electricity with protection and control functions
  • every floor is a sub-system based on KNX, that is integrated into the common ne via IP channels
  • the system is built the same way on the technical floor, but building services are located here, that are not included into the common net of the smart home
  • the automation system chooses modes and sets parameters automacially on the basis of programmed algorythms
  • a user communicates with the system via tablets providing him all required information
  • an extremelly complicated system looks to the user as a set of simple intuitive images of a friendly interface on the tablet screen

Video of a typical cottage based on KNX equipment:

Example of used equipment

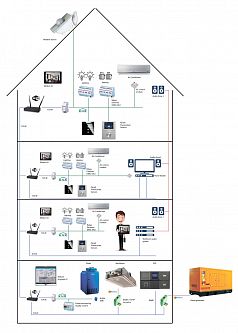

  • KNX home automation equipment of any manufacturer (see the scheme)
  • Customer’s sensor control devices
  • Computers or control panels of engineer systems
  • Optional: UMC iRidium server

Recommended licenses

  • a typical license for such automation object: "Basic KNX and AV & Custom Systems, IP cameras and SIP" for 5 control panels
